Big Area 1.2W/Cm2 395nm Drying UV Adhesive Curing Systems

Ask Lasest Price
Brand Name :	BirdUV
Model Number :	BUAM
Certification :	CE
Price :	negotiable
Supply Ability :	100 Set/Sets per Month

Add to Cart

Product Details
Company Profile

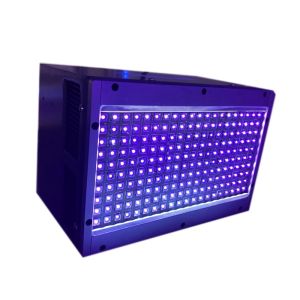

Big Area 1.2W/Cm2 395nm Drying UV Adhesive Curing Systems

UV LED Area light Curing System

UV LED Area Curing system have widely used in many area for UV glue and UV Resin adhesive, such as speaker adhesive, glass adhesive, screen adhesive and so on.

Are you searching for the best UV LED for adhesive curing? You can depend on Bird UV to buy top quality systems that are equipped with excellent features and functionalities. You can expect smooth, reliable and safe operation with our products.

Product Details

OPTIONAL WAVELENGTHS

Far UV: 255, 280nm

Near UV: 305, 310, 325, 335, 365, 375, 385, 395, 400,405, 415 nm

Visible light: 430, 450, 455, 465, 465-470, 470, 470-475, 475, 480, 490, 500, 505, 520, 520-525, 525, 530, 535, 550, 565, 570, 580, 590, 588-593, 598-600, 600, 610, 625, 630, 645, 650, 655, 660, 670, 680, 690, 700, 720, 735, 750, 760, 780, 850 nm

Spectrum bandwidth: ± 5 nm

Product Parameters

UV LED Linear light Curing Sysem
Model	Emitting area(mm)	Wavelenght(nm)	light intensity	cooling method
B30*20	30*20	365	4W/cm2	Air cooling/Water cooling
B100*100	100*100	395	1.2W/cm2	Air cooling/Water cooling
B200*50	200*50	365	1.2W/cm2	Air cooling/Water cooling
B200*100	200*100	365	1.2W/cm2	Air cooling/Water cooling
B200*185	200*185	365	1.2W/cm2	Air cooling/Water cooling
B300*50	300*50	365	1.2W/cm2	Air cooling/Water cooling
B300*200	300*200	365	1.2W/cm2	Air cooling/Water cooling
B330*140	330*140	365	1.2W/cm2	Air cooling/Water cooling
B330*210	330*210	365	1.2W/cm2	Air cooling/Water cooling
B400*130	400*130	365	1.2W/cm2	Air cooling/Water cooling
B400*140	400*140	365	1.2W/cm2	Air cooling/Water cooling
B400*150	400*150	365	1.2W/cm2	Air cooling/Water cooling
B400*210	400*210	365	1.2W/cm2	Air cooling/Water cooling
B600*150	600*150	365	1.2W/cm2	Air cooling/Water cooling

Various types of products to address different needs

Bird UV offers various types of UV LED curing systems for adhesive including UV LED conveyor curing machine, UV LED linear light curing system, UV LED oven, UV LED spotlight curing system and UV LED area light curing system. These products come with different wavelengths to meet the curing needs of the specific adhesive used.

Leading benefits
Bird UV LED curing systems for adhesive do not need any warm up or cool down phases. Your energy expenses come down significantly with our products. Maintenance becomes minimal and long operating life can also be associated with our UV LED for adhesive. Our prices are unbeatable in the industry and the operating costs can be reduced significantly as well.

Main Features

1) Simple structure in uv led ,easy in installation and maintainence

2) Adopting advanced world famous brand components in uv led curing system
3) High-intensitive UV output
4) Complete temperature detection
5) Stabilized drive control

Product Application

Applications of UV LED Area Light Curing System

The applications of UV LED area light curing system have been growing in a fast manner for quite sometimes. If you searching for a highly efficient LED area light for adhesive bonding applications, you can contact Bird UV. Our product puts reduced amount of heat onto the substrate to allow curing of heat sensitive materials like adhesives without worrying about any damage.

Different wavelengths, low operating expenses and high energy efficiency

We offer a highly reliable UV LED area light curing system with different wavelengths to make speedy and safe curing of adhesives. Our product does not require any warm-up time and you can switchon and off as needed. Low operating costs and high energy efficiency play an important role in making our products extremely popular.

Loaded with advanced features, our light curing system provides consistent and reliable operation for a long period of time. You are allowed to choose between systems equipped with water cooling or aircooling features depending on your exclusive needs.

Big Area 1.2W/Cm2 395nm Drying UV Adhesive Curing Systems
